Argo CD CDK8S Config Management Plugin

cdk8s in Akuity Platform

If you haven't stored raw kubernetes YAML files in your GitOps repository, you most probably used some sort of tooling that generates YAML files, for example tanka, helmfile and cdk8s.

Argo CD doesn't include these tools "natively" but gives a way to integrate with them using Config Management Plugins.

This enables you to write manifests in any tool and CMPs would process them and provide raw manifests to Argo CD.

CDK8S Integration

Cloud Development Kit for Kubernetes (CDK8S) is a tool where you define manifests in one of the following programming languages: Typescript, JavaScript, Golang, Python or Java.

To properly integrate CDK8S with Argo CD, we need to write configuration for init and generate in CMP. In this case init would install dependencies for selected programming language. For example, Typescript requires npm install while Python pipenv update.

Argo CD needs the final output in raw YAML, so the below command is common for all languages to generate.

cdk8s synth --stdout

This tells us that Argo CD would need cdk8s CLI, CLI for the programming language used, CLI for dependency management tool, programming language used to run CDK8S (NodeJS). In order for this to work, we would need a Docker image with all of these tooling available, while also make sure that only the required tooling is available inside the image.

At the time of writing this, there is no unified place with support of all available programming languages in CMP.

Introducing OSS repository for CDK8S

We have prepared an open source repository with all available programming languages supported in CDK8S. You can visit it at https://github.com/akuity/cdk8s-cmp to know more.

We also encourage you to use the Docker images on ghcr.io/akuity/cdk8s-cmp-<typescript/go/python/java>. See all available versions here

To integrate with an existing workflow, you first would need to attach the container to repo-server and then inject the plugin definition.

spec:
  containers:
    - name: my-plugin
      command:
        - /var/run/argocd/argocd-cmp-server
      image: 'ghcr.io/akuity/cdk8s-cmp-<go/typescript/java/python>:latest'
      securityContext:
        runAsNonRoot: true
        runAsUser: 999
      volumeMounts:
        - mountPath: /var/run/argocd
          name: var-files
        - mountPath: /home/argocd/cmp-server/plugins
          name: plugins
        - mountPath: /home/argocd/cmp-server/config/plugin.yaml
          subPath: plugin.yaml
          name: my-plugin-config
        - mountPath: /tmp
          name: cmp-tmp
  ...
  volumes:
  - configMap:
      name: my-plugin-config
    name: my-plugin-config
  - emptyDir: {}
    name: cmp-tmp
  ...

You would need to inject plugin configuration from ConfigMap. Here is the example plugin.yaml for Golang.

apiVersion: v1
kind: ConfigMap
metadata:
  name: my-plugin-config
  namespace: argocd
data:
  plugin.yaml: |
    apiVersion: argoproj.io/v1alpha1
    kind: ConfigManagementPlugin
    metadata:
      name: cdk8s-go
    spec:
      version: v1.0
      init:
        command: [cdk8s]
        args: [import]
      generate:
        command: [cdk8s, synth]
        args: [--stdout]
      discover:
        fileName: "*.go"

CDK8S Integration Inside the Akuity Platform

If you have your Argo CD instance on Akuity Platform then you are just a few clicks away to integrate the CDK8S config management plugin of your choice of programming language.

Akuity Argo CD cdk8s Config Management Plugin
Akuity Argo CD cdk8s Config Management Plugin

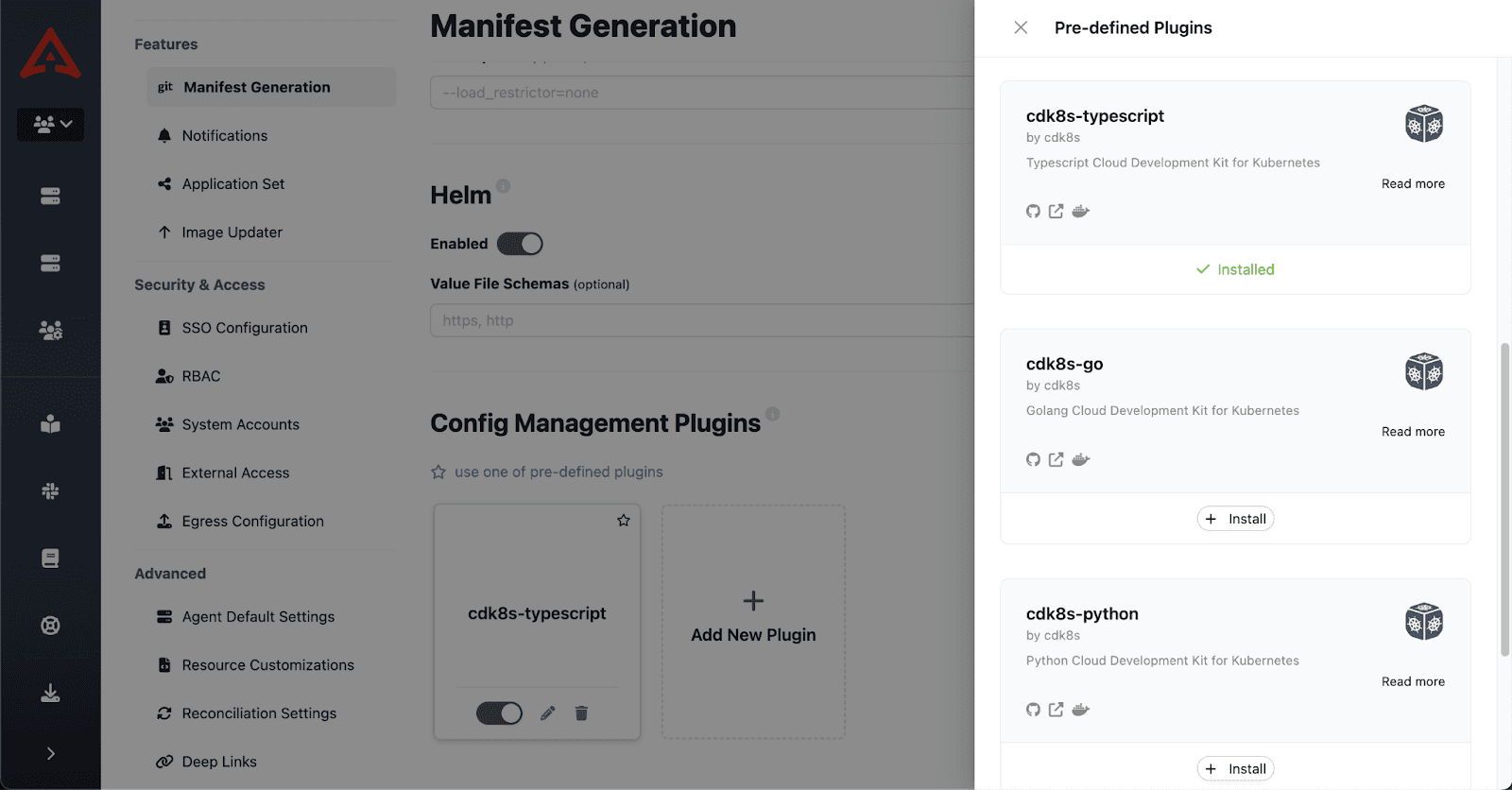

Simply go to instance Settings > Manifest Generation and click on "Use one of pre-defined plugins". Then install the CDK8S plugin you want to use.

We hope that this integration will make your life easier.
